XC9519A12AZR-G

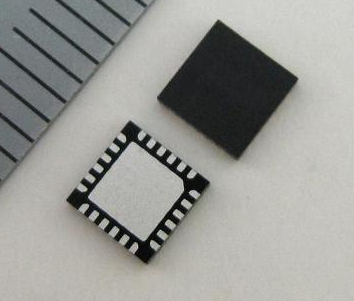

Dual Output Step-Up/Inverting DC/DC Converter, QFN-24
Product Overview
The XC9519 series is a 2 channel (step-up and inverting) DC/DC converter IC. One DC/DC converter is a step-up DC/DC and the other is an inverting DC/DC converter. The step-up converter compares a built-in reference voltage 1.0V to the FBP voltage (accuracy
Minimum Quantity
1000
Function
Step-Up, Step-Up/Step-Down
Output Configuration
Positive and Negative (Dual Rail)
Topology
Boost, Buck-Boost
Type of Output
Adjustable
Number of Outputs
2
Voltage - Input (Min)
2.7V
Voltage - Input (Max)
5.5V
Voltage - Output (Max)
18V, -15V
Current - Output
2A (Switch)
Frequency - Switching
1.2MHz
Synchronous Rectifier
No
Operating Temperature
-40C ~ 85C (TA)
Mounting Type
Surface Mount
Supplier Device Package
24-WFQFN Exposed Pad
Package/Case
24-QFN (4x4)
