XC9261B25CER-G

COT Control, 1.5A Synchronous Step-Down DC/DC Converter, 2.5V USP-6C
Torex Semiconductor


Product Overview

The XC9260/XC9261 series is a group of synchronous-rectification type DC/DC converters with a built-in P-channel MOS driver transistor and N-channel MOS switching transistor, designed to allow the use of ceramic capacitors. Output voltage is internally set in a range from 0.8V to 3.6V (accuracy:

Minimum Quantity
3000
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Type of Output
Fixed
Number of Outputs
1
Voltage - Input (Min)
2.7V
Voltage - Input (Max)
5.5V
Voltage - Output (Min/Fixed)
2.5V
Voltage - Output (Max)
-
Current - Output
1.5A
Frequency - Switching
1.2MHz
Synchronous Rectifier
Yes
Operating Temperature
-40C ~ 105C (TA)
Mounting Type
Surface Mount
Supplier Device Package
6-UFDFN Exposed Pad

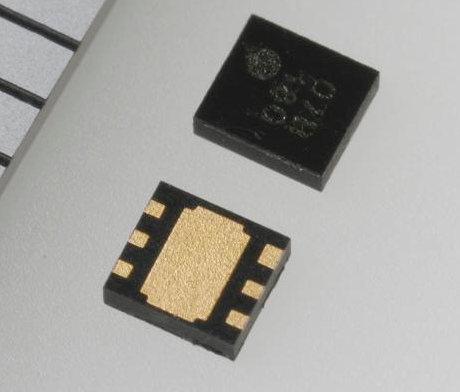

Package/Case
6-USPC (1.8x2)
