XC9251A085QR-G

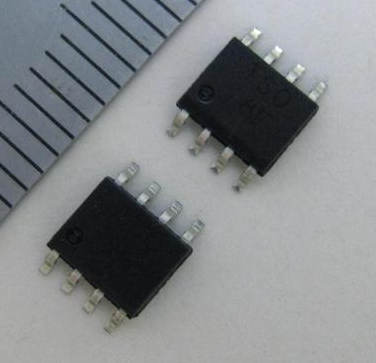

30V Driver Transistor Built-In Step-Down DC/DC Converter, 2A SOP-8FD
Product Overview
The XC9250/XC9251 series are 30V operation step-down DC/DC converter ICs with an internal driver transistor. The internal Nch driver transistor is driven by bootstrap to achieve a stable, high-efficiency power supply up to an output current of 2.0A. Low ESR capacitors such as ceramic capacitors can be used for the load capacitor (CL). A 0.8V reference voltage source is incorporated in the IC, and the output voltage can be set to a value from 1.2V to 12.0V using external resistors (RFB1, RFB2). 300kHz or 500kHz can be selected for the switching frequency. The generation of unneeded noise can be suppressed by synchronizing to an external CLK in a range of
Minimum Quantity
1000
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Type of Output
Adjustable
Number of Outputs
1
Voltage - Input (Min)
7V
Voltage - Input (Max)
30V
Voltage - Output (Min/Fixed)
1.2V
Voltage - Output (Max)
12V
Current - Output
2A
Frequency - Switching
500kHz
Synchronous Rectifier
No
Operating Temperature
-40C ~ 105C (TA)
Mounting Type
Surface Mount
Supplier Device Package
8-SOIC (0.154", 3.90mm Width)
Package/Case
8-SOPFB
