Power Supplies
PS-2400
High Voltage Power Supply - up to 24 KW
Product Overview
19 in. AC-DC Front End Power Rack
325 VDC, up to 24 KW, 5-U

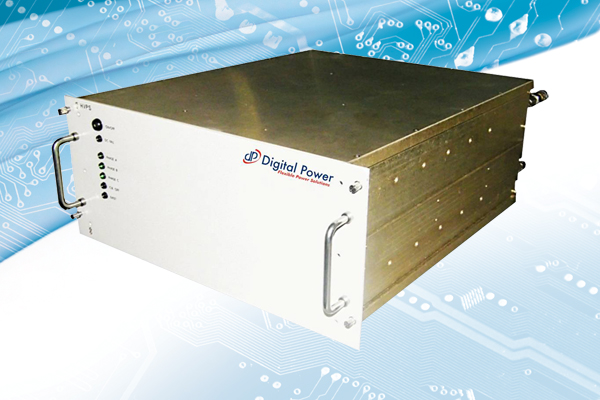

The Digital Power PS-2400 is a high power, high voltage power system solution suitable for use in a wide variety of military and commercial applications. Scalable from 2 KW to 24 KW, the PS-2400 supports up to twelve 2 KW power modules in an N + 1 redundant configuration.
Output Current
75 A
Efficiency (Typical)
> 90%
Configuration
N + 1 redundant
Power, Output
Up to 24 KW
Primary Type
AC-DC
Type
Front End
Voltage, Input
380 VAC ± 10% line-to-line 3 phase star connection or 440 VAC ± 10.0%
Voltage, Output
325 VDC
RoHS Compliant
Yes
