PS-1872

High Voltage Power Supply - Up to 72 KW

Product Overview

View Datasheet

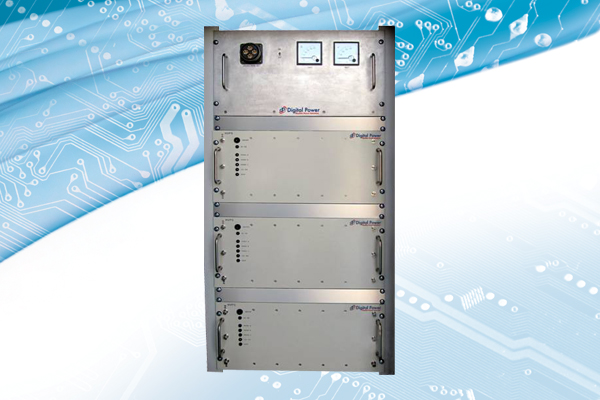

19 in. AC-DC Front End Power Rack

325 VDC, up to 72 KW, 24-U

The Digital Power PS-1872 is a high power, high voltage power system solution suitable for use in a wide variety of military and commercial applications. Scalable from 24 KW to 72 KW, the PS-1872 includes three redundant 24 KW sub-rack modules. Each sub-rack module contains up to twelve 2 KW modules in an N + 1 redundant configuration.

Output Current
225 A
Efficiency (Typical)
> 89%
Configuration
N + 1 redundant
Power, Output
Up to 72 KW
Primary Type
AC-DC
Type
Front End
Voltage, Input
380 VAC ± 10% line-to-line 3 phase star connection or 440 VAC ± 10.0%
Voltage, Output
325 VDC
RoHS Compliant
Yes
