Back to: PMD

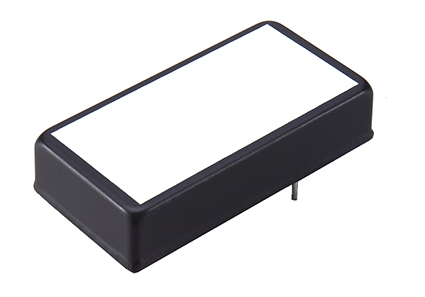

PMD10 12D15 WHS-T

DC/DC Converter 10 W, 12 VDC Input, 15 V / 0.333 A, 87% Efficiency
MTM Power


Product Overview

Special Features:

  • 4 : 1 Input Range
  • Input pi-Filter
  • Extended Temperature Range
  • Short Circuit Protected
  • Acc. to EN 55 022/A
Type of Power Supply
DC/DC
Power (W)
10
DC Input Nominal
12 V
DC Input (V)
9 - 18 V
Output Voltage U1 (V)
15
Output Current U1 (A)
0.333
Efficiency % (≥)
87
Mounting Type
PCB
Dimensions (mm)
50.8 x 25.4 x 10.2 mm
Case
2" x 1"
Weight (g)
35
Output Voltage U2 (V)
-15
Output Current U2 (A)
0.333
