XC8109AC10ER-G

P-channel MOSFET High Function Power Switch, 900mA, USP-6C

Product Overview

The XC8109 series is a P-channel MOSFET power switch IC with a low ON resistance. A current limit, reverse current prevention (prevents reverse current from VOUT to VIN), soft start, thermal shutdown, and an under voltage lockout (UVLO) are incorporated as protective functions. A flag function monitors the power switch status. The flag output has N-channel open drain structure, and outputs Low level signal while over-current or overheating is detected, or while the reverse current prevention is operated. A variable current limiting function is integrated, allowing the current limit value to be set, using an external resistor. The voltage level which is fed to CE pin determines the status of XC8109. The logic level of CE pin is selectable between either one of active high or active low.

Applications:

  • Set Top Boxes
  • Digital TVs
  • PCs
  • USB Ports/USB Hubs
  • HDMI
Minimum Quantity
3000
Packaging
Tape & Reel (TR)
Type
USB Switch
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
P-Channel
Interface
On/Off
Voltage - Load
2.5 V ~ 5.5 V
Current - Output (Max)
900mA
Rds On (Typ)
85 mOhm
Input Type
Non-Inverting
Features
Slew Rate Controlled, Status Flag
Fault Protection
Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
Operating Temperature
-40°C ~ 105°C (TA)
Mounting Type
Surface Mount

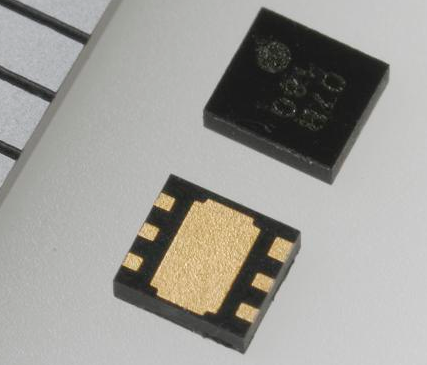

Package/Case
6-UFDFN Exposed Pad
Supplier Device Package
USP-6C
