XBS104S14R-G
Schottky Barrier Diode, 40V 1A SOD-123A
Minimum Quantity
3000
Packaging
Tape & Reel (TR)
Mounting Type
Surface Mount
Package/Case
SOD-123
Supplier Device Package

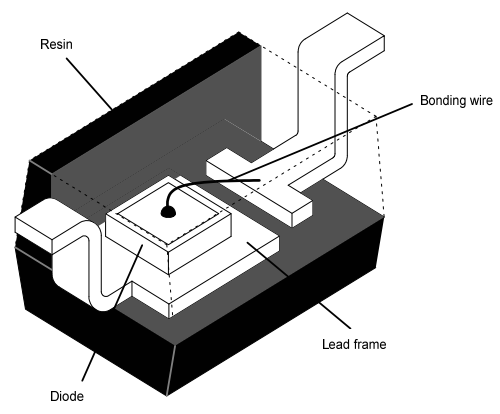

SOD-123A
Diode Type
Schottky
Voltage - DC Reverse (Vr) (Max)
40V
Current - Average Rectified (Io)
1A
Voltage - Forward (Vf) (Max) @ If
540mV @ 1A
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)
25ns
Current - Reverse Leakage @ Vr
200µA @ 40V
Capacitance @ Vr, F
35pF @ 10V, 1MHz
Operating Temperature - Junction
125°C (Max)
