XC74UL00AANR

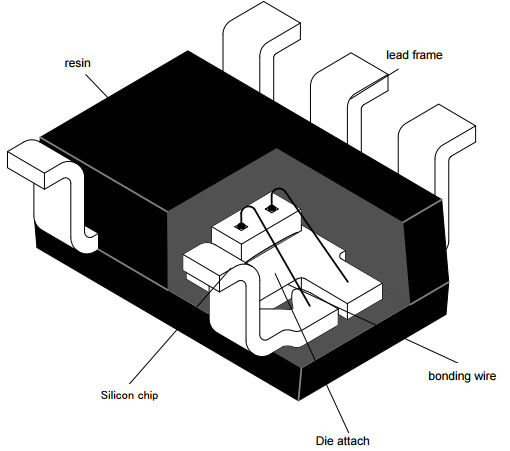

2-input NAND Gate, SSOT-25
Minimum Quantity
3000
Packaging
Tape & Reel (TR)
Type
NAND Gate
Number of Circuits
1
Number of Inputs
2
Voltage - Supply
2 V ~ 5.5 V
Current - Quiescent
1µA
Current - Output High, Low
8mA, 8mA
Logic Level - Low
0.5 V ~ 1.65 V
Logic Level - High
1.5 V ~ 3.85 V
Max Propagation Delay @ V, Max CL
7.5ns @ 5V, 50pF
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package/Case
5-TSSOP, SC-70-5, SOT-353
Supplier Device Package
SSOT-25
