XC25BS7001ER-G

PLL Clock Generator IC with Built-In Divider/Multiplier Circuits, USP-6C

Product Overview

The XC25BS7 series are high frequency, low power consumption PLL clock generator ICs with divider circuit & multiplier PLL circuit. Laser trimming gives the option of being able to select from input divider ratios (M) of 1 to 256 and output divider ratios (N) of 1 to 256. Output frequency (fQ0) is equal to reference clock oscillation (fCLKin) multiplied by N/M, within a range of 1MHz to 100MHz. Further, frequency within a range of 32kHz to 36MHz can be inputted as a reference clock. The IC stops operation when low level signal is inputted to the CE pin. For this, consumption current can be reduced and output will be one of high-impedance. Because the series is semi-custom, please ask Torex sales contacts for your requested specifications such as input/output frequency, supply voltage. However, the series has the limit of specifications; therefore, your request may not be fully satisfied with your requested frequency range.

Applications:

  • Clock for controlling a Imaging dot
  • Microcomputer and HDD drives
  • Cordless phones
  • Wireless communication equipment
  • PDAs
  • Cameras, VCRs
  • Various system clocks
Minimum Quantity
3000
Packaging
Tape & Reel (TR)
PLL
Yes
Input Type
Clock
Output
Clock
Number of Circuits
1
Ratio - Input:Output
1:1
Differential - Input:Output
No/No
Frequency - Max
100MHz
Divider/Multiplier
Yes/Yes
Voltage - Supply
2.5 V ~ 5.5 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount

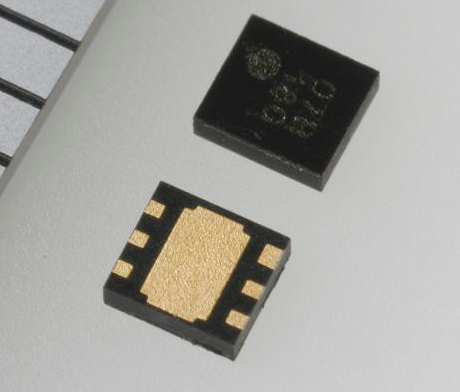

Package/Case
6-UFDFN Exposed Pad
Supplier Device Package
USP-6C
