XC25BS5001DR-G

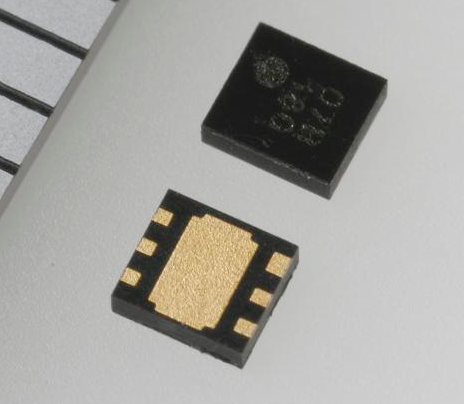

PLL Clock Generator IC with Built-In Divider/Multiplier Circuit (For Low Frequency Range), USP-6B

Product Overview

The XC25BS5 series are high frequency, low power consumption PLL clock generator ICs with divider circuit & multiplier PLL circuit. Laser trimming gives the option of being able to select from divider ratios (M) of 1,3 to 2047 and multiplier ratios (N) of 6 to 2047. Output frequency (Q0) is equal to reference oscillation (fCLKin) multiplied by N/M, within a range of 3MHz to 30MHz. Q1 output is selectable from input reference frequency (f0), input reference frequency/2 (f0/2), ground (GND), and comparative frequency (f0/M). Further, comparative frequencies, within a range of 12KHz to 500KHz, can be obtained by dividing the reference oscillation. By halting operation via the CE pin, consumption current can be controlled and output will be one of high-impedance.



Applications:

  • Crystal oscillation modules
  • Personal computers
  • PDAs
  • Portable audio systems
  • Various system clocks
Minimum Quantity
3000
Packaging
Tape & Reel (TR)
PLL
Yes
Input Type
Clock
Output
3-State
Number of Circuits
1
Ratio - Input:Output
1:1
Differential - Input:Output
No/No
Frequency - Max
30MHz
Divider/Multiplier
Yes/Yes
Voltage - Supply
2.97 V ~ 5.5 V
Operating Temperature
-30°C ~ 80°C
Mounting Type
Surface Mount
Package/Case
6-WFDFN Exposed Pad
Supplier Device Package
USP-6B
